Please note: Currently 4-6 week lead time on orders.

Commander X16™ Case


  • Officially supported case for the Commander X16™ project
  • Supports side-entry cartridges and add-ons
  • Supports low-profile expansion cards (riser needed)
  • Ultra Compact low profile design
  • Available with white or clear lid

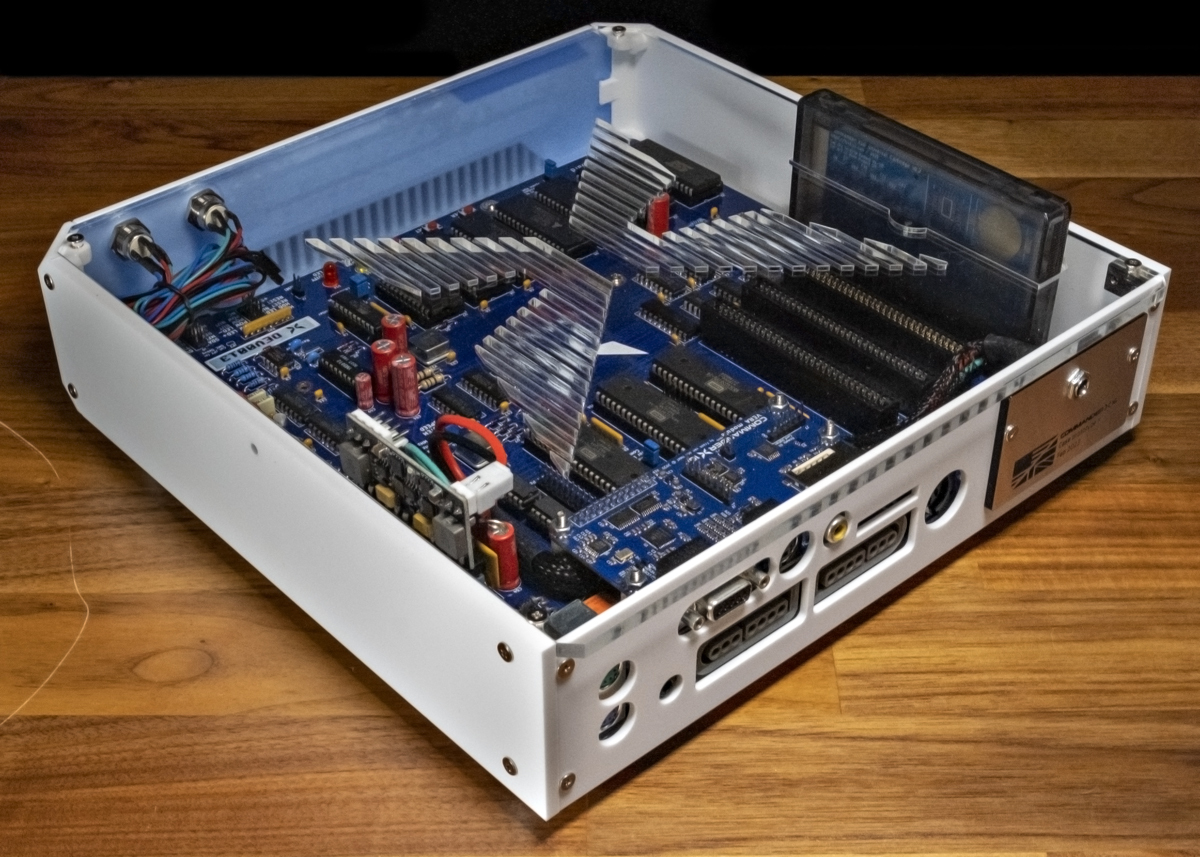

The LAZER3D X16-P is the official case for the Commander X16™ project, perfectly complimenting the board with full feature support and customisable retro styling.



  • Supports revised Commander X16 development board with side entry cartridge slot

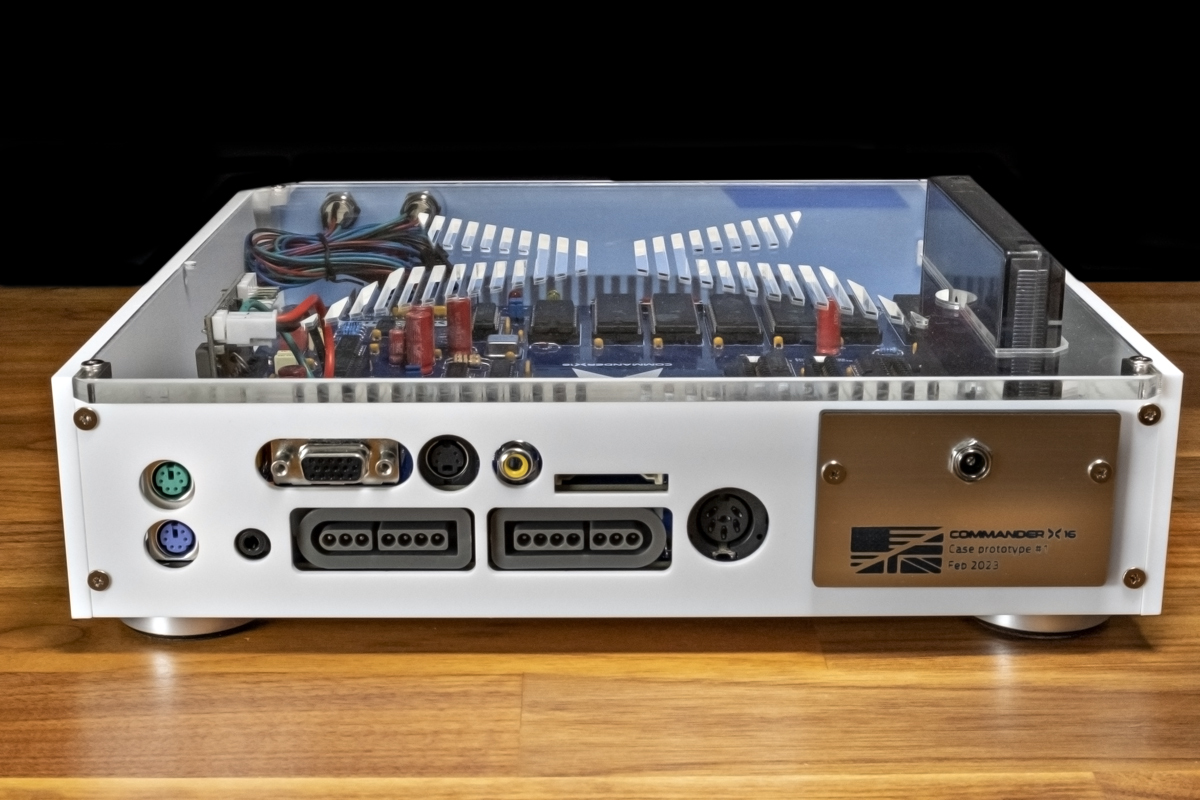

  • Bespoke Rear Panel for X16 ports
  • Knockout to support expansion cards with rear IO
  • 90deg riser card needed for expansion cards

Other Features

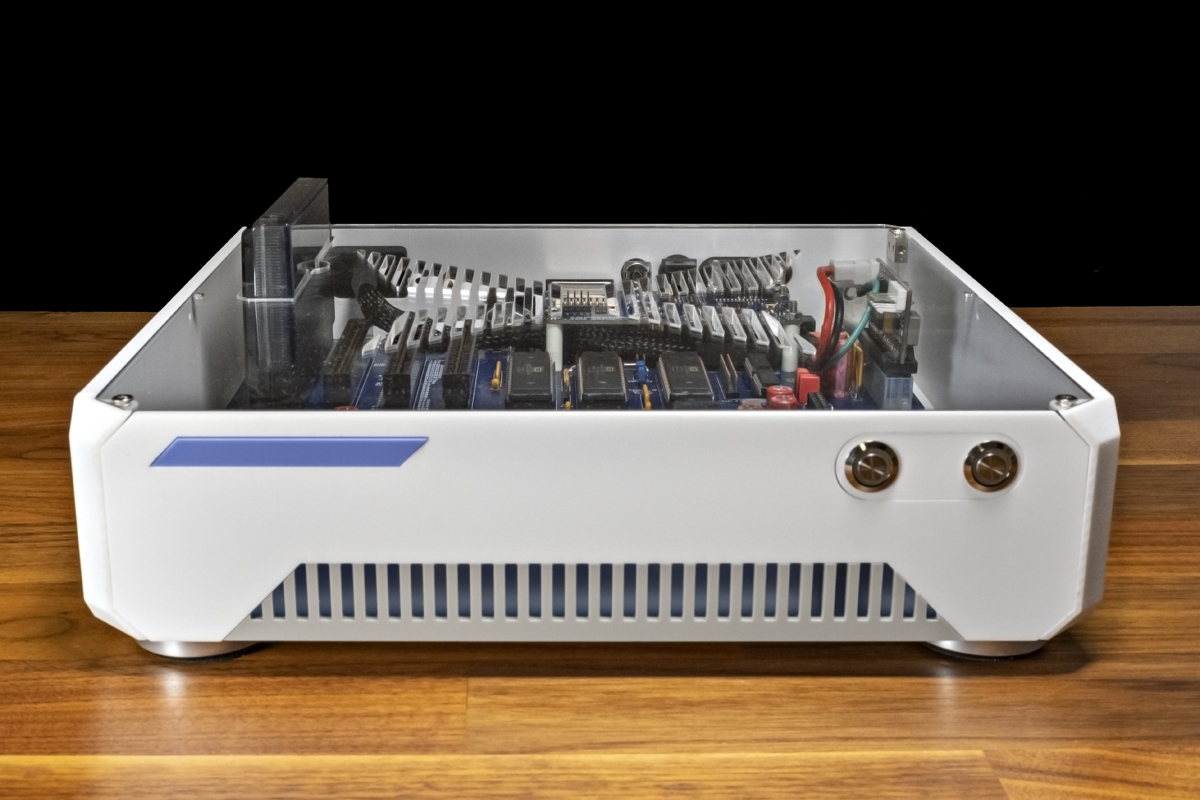

  • 1 x Power Button, 1 x Reset Button with LEDs
  • Clear or white lid options
  • Individually numbered
  • HiFi Feet included


  • Main Panels: 5mm Acrylic sheet
  • Side Panels: 3mm Acrylic Sheet
  • Front Corners: SLS 3D printed nylon with brass threaded inserts
  • Colours and Finish (case): matt white
  • Colours and Finish (lid): matt white, clear


  • (L) 271mm x (W) 269mm x (H) 72mm – including HiFi feet
  • 4.5 Litre Volume (excluding feet)
  • 5.2 Litres Volume (including feet)

Supported PSUs

  • Official X16 power supply
  • Any pico style power supply – up to 40mm in height, see HERE for a guide on DC-DC power supplie

Version 2

  • This case features a revised rear, side and lid panels
  • An upgrade kit including new rear and side panels will is available for existing X16-P case owners
  • The new design of lid can be purchased separately
Weight 1.85 kg
Dimensions 33 × 33 × 6 cm
Lid Colour

Clear, White
